Hot dipped galvanized Double Twisted Hexagonal Mesh Gabions antirusting woven basket gabion for river bank

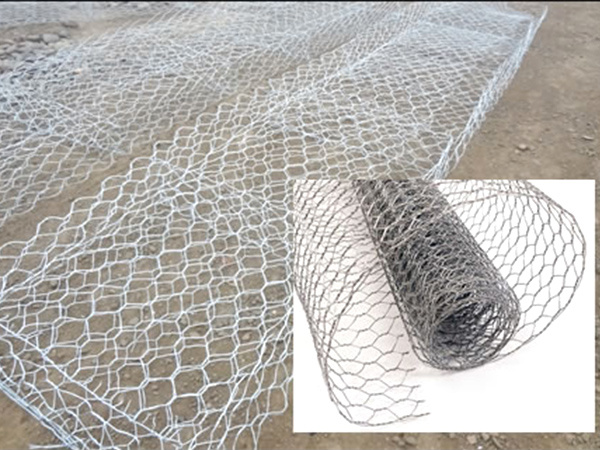

Woven Wire Mesh Gabion is made of many mesh with a hexagonal holes formed by twisting a pair of wires together with one and a half turns (sometimes reffered to as triple twist or double twist).

Key words:

Classification:

Woven Wire Mesh Gabion

E-mail:

sales01@ypwiremesh.com

Inquiry
Related
  • Description

  • Hot dipped galvanized Double Twisted Hexagonal Mesh Gabions antirusting woven basket gabion for river bank

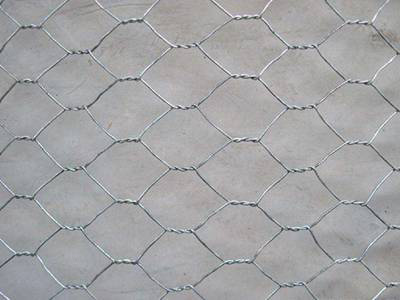

    Woven Wire Mesh Gabion is made of many mesh with a hexagonal holes formed by twisting a pair of wires together with one and a half turns (sometimes reffered to as triple twist or double twist).And the hexagonal holes mesh is made of high tensile strength, high corrosion resistance galvanized wire,PVC coated wire or galfan wire (zinc-aluminium alloy wire) woven by automatic weaving machine.

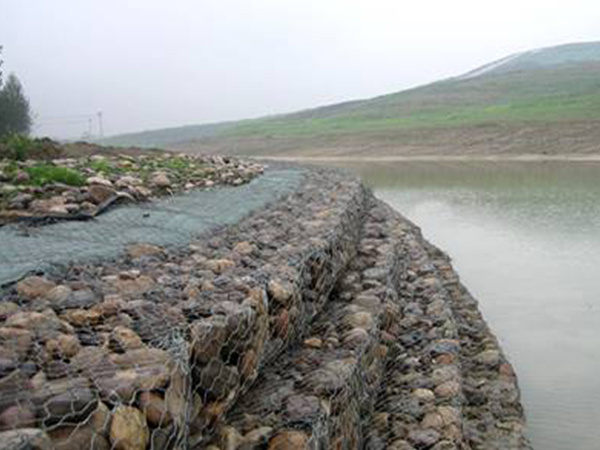

    Woven Wire Mesh Gabion includes two types of gabion basket and gabion mattress,which are commonly used in river and dam protection,and can effectively prevent the scouring of embankment by water flow and prevent flooding,so it has been widely used all over the world.

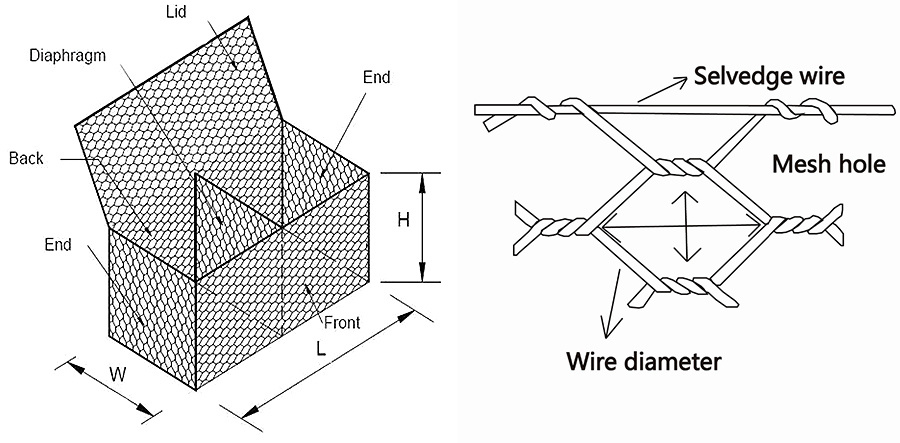

    Specification







    Material: Galvanized wire
                    Hot dipped galvanized wire
                    Galvanized then PVC/vinyl/polymer coated
                    Galfan (zinc aluminum alloy coating) wire [95% zinc,5% aluminum or 90% zinc 10% aluminum coated]
                    Galfan then PVC coated

    Wire diameter: 2.0mm,2.2mm,2.4mm,2.7mm,3.0mm,3.5mm,4.0mm,etc

    Selvedge wire diameter: 3.0-4.0mm

    Lacing wire diameter: 2.0-2.2mm

    Mesh opening size: 60*80mm,80*100mm(widely use),100*120mm,120*150mm or customized.

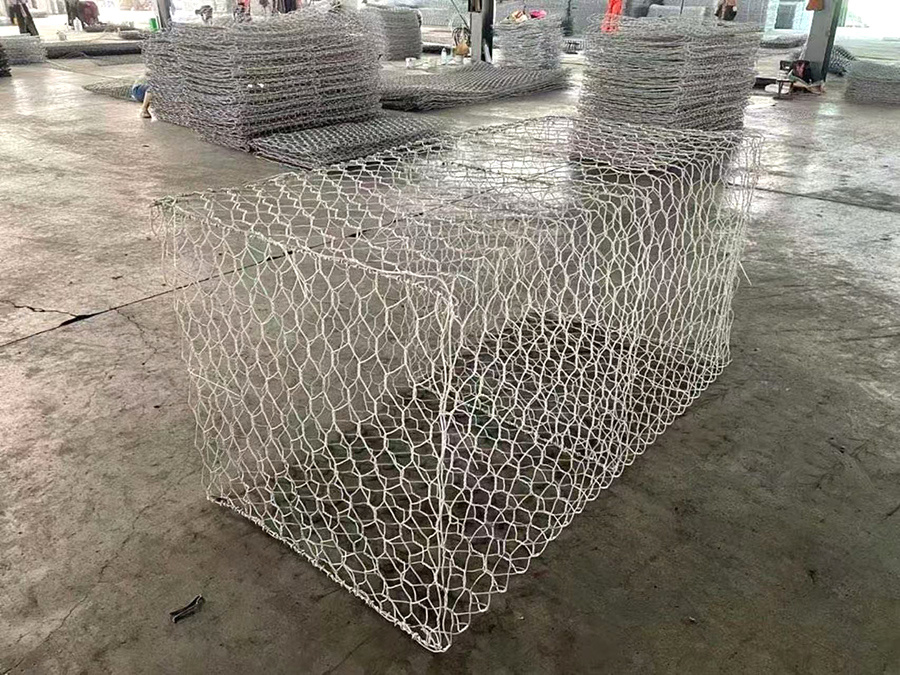

    Gabion basket size: 2*1*0.5m,2*1*1m,3*1*1m,4*1*1m,4*1*2m,4*2*0.3m,6*2*0.3m,etc.

    Gabion mattress size: 3*2*0.3m,4*2*0.3m,5*2*0.3m,6*2*0.3m,etc.

    ypbc343

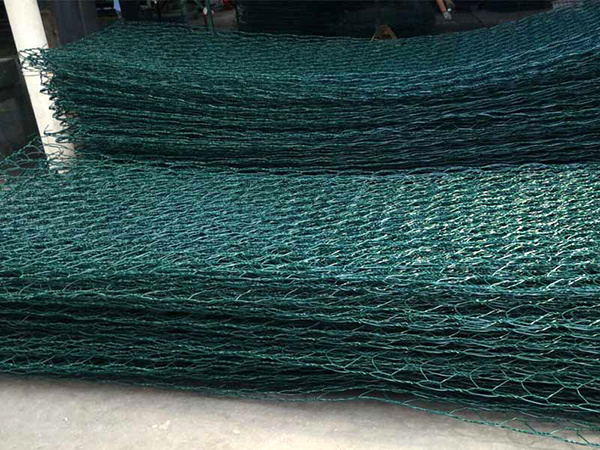

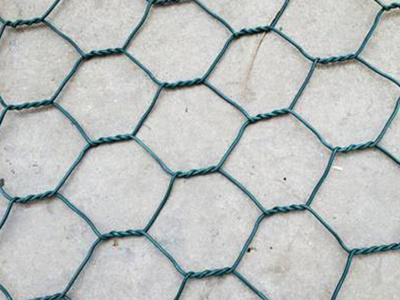

    PVC coated gabion mesh

    Advantage

    • Economic.

    • Just fill the stone into the Gabions and seal it.

    • Simple installation.

    • No special technology needed.Weather proof under natural destroy, corrosion resistant.

    • No collapse even under big scope of deforming.

    • Sludge in the stones is good for plant growing.

    • Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic.

    • Less transport freight. It can be folded together for transport and further installation.





    Application

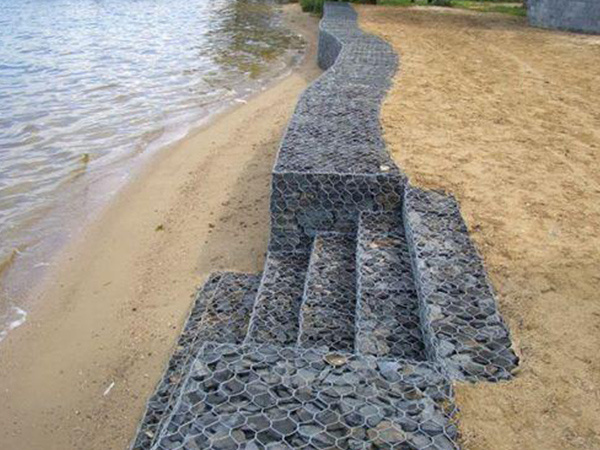

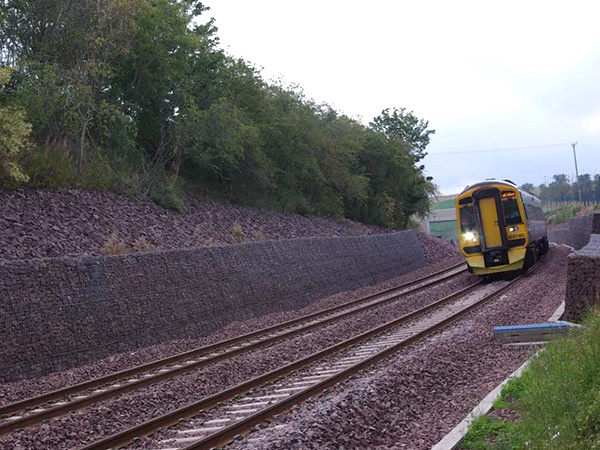

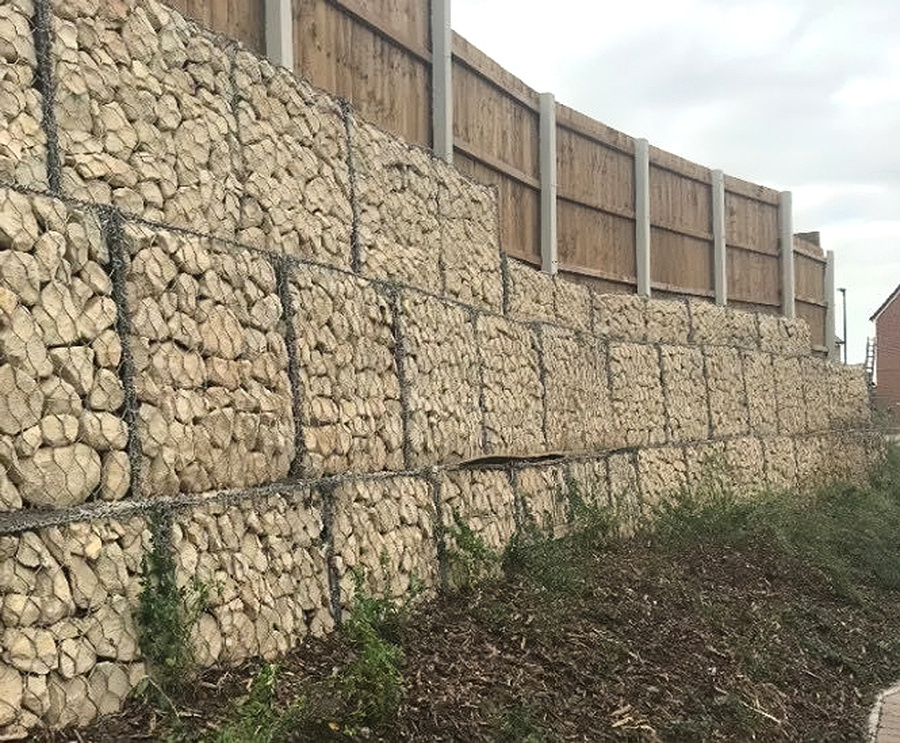

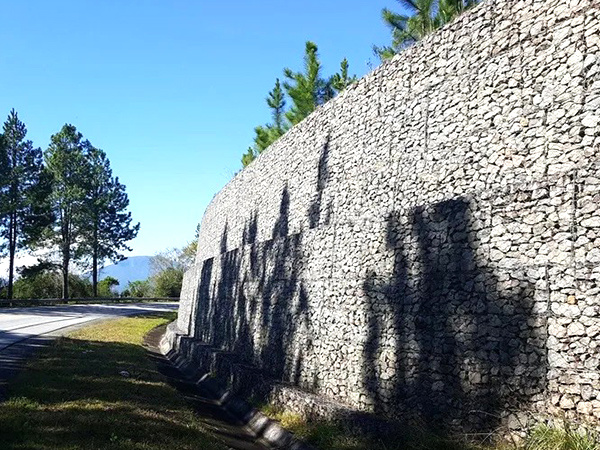

    Gabion Baskets used for Control and guide of water or flood , Flood bank or guiding bank , Preventing of rock breaking , Bridge Protection , Water and soil protection , Coast protection , Seaport engineering , Strengthening structure of soil , Protection of road.
