Wholesale hot dipped galvanized welded wire gabion box 200*100*50mm

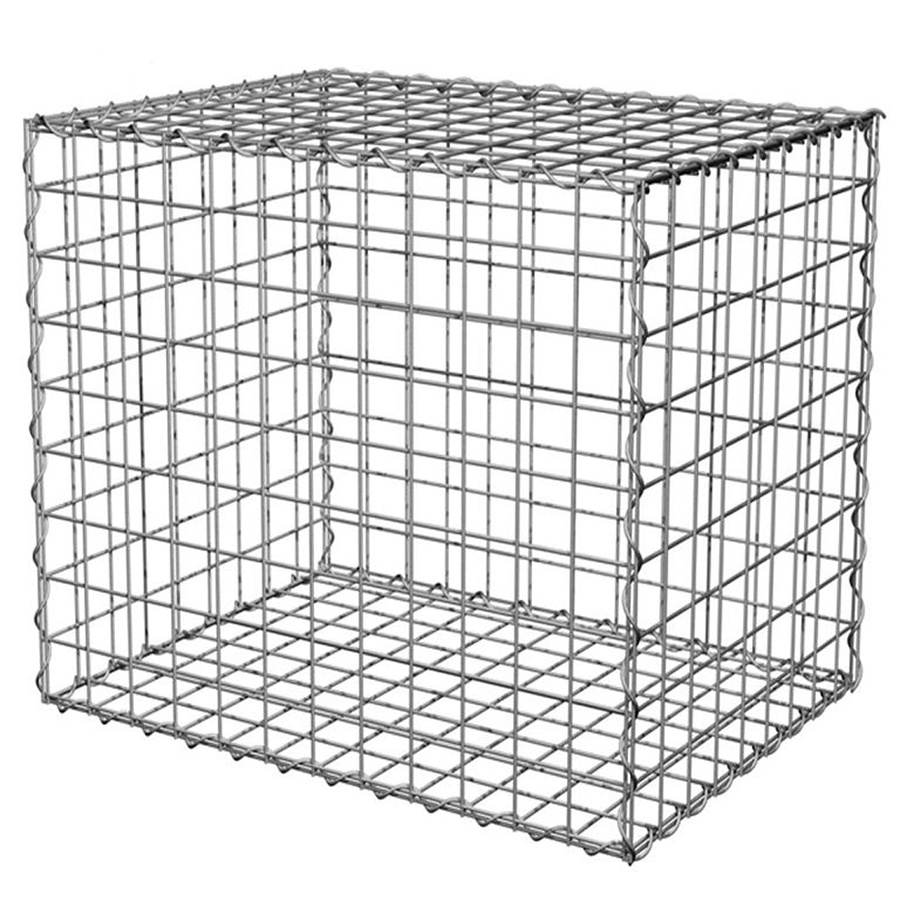

Welded mesh gabions are made of welded wire mesh panels assembled with spirals, locking pins and stiffener.

Key words:

Welded Gabions

Classification:

Welded Gabions

E-mail:

sales01@ypwiremesh.com

Inquiry
Related
  • Description

  • Wholesale hot dipped galvanized welded wire gabion box 200*100*50mm





    Welded mesh gabions are made of welded wire mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc. The wire is also available with a tough, durable powder coating.

    Welded mesh gabions are manufactured from a square mesh, normally of opening size 75.0mm × 75.0mm where the longitudinal wires are welded to the cross wires at their intersection points.
    These welded mesh gabions have many applications, including erosion defense, river control, reservoirs, retaining walls, and agricultural and commercial landscapes. They are easy to install and join together to form a retaining wall structure.

    Specification of Welded Mesh Gabion：





    Material：Low carbon steel wire

    Surface treatment：galvanized wire,hot dipped galvanized wire,galfan coated (95% Zn / 5% Al),powder coating after galvanized

    Mesh opening size：76.2*76.2mm(standard of opening size),75*75mm(nomally of opening size),50.8*76.2mm,50*100mm,50*200mm,80*80mm,100*100mm,etc

    Mesh wire diameter：4.0mm(common specification),3.0-6.0mm

    Spiral wire diameter：4.0mm(common specification),3.0-5.0mm

    Locking pin wire diameter：3.0-5.0mm

    Gabion size:2*1*1m,2*0.5*1m,2*0.5*0.5m,2*0.5*2.5m,etc

    Connection type：spiral wires,C rings,U clips,lacing wires,hook connection

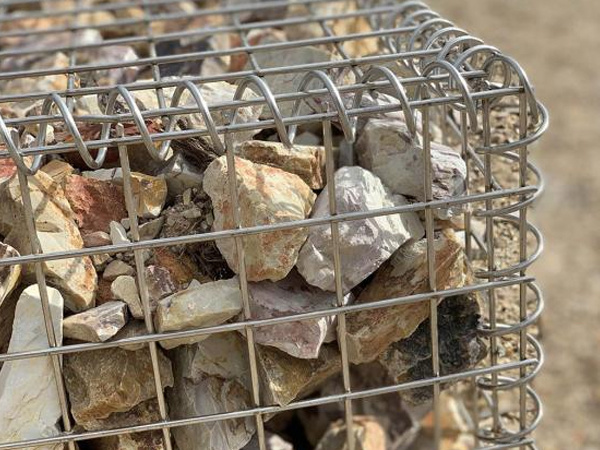

    Spiral wire

    lacing wires

    U clips

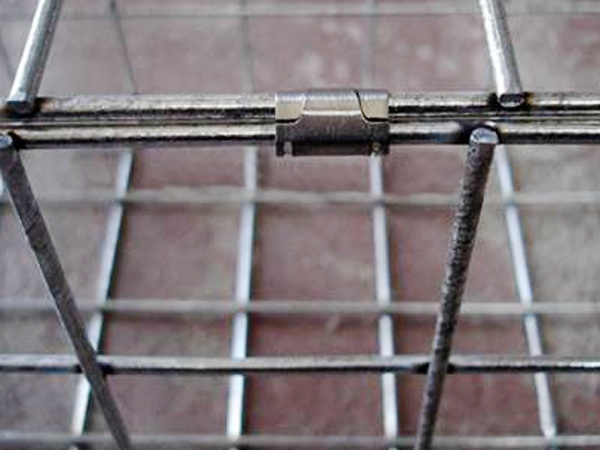

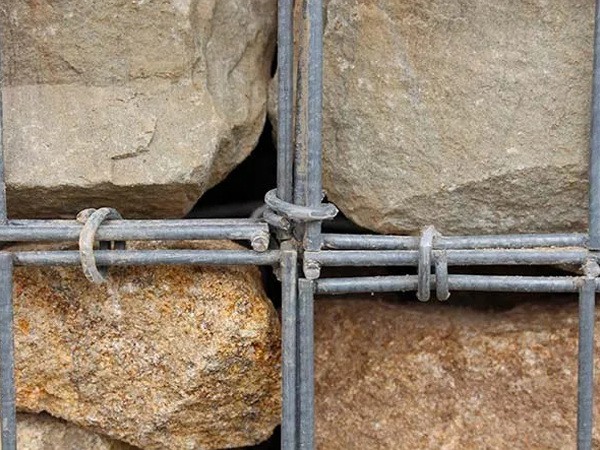

    C rings

    hook connection



    Advantage of Welded Mesh Gabion:

    • Flexibility and air permeability:Its weave construction allows it to better adapt to changes in terrain while also allowing for better breathability and flow.

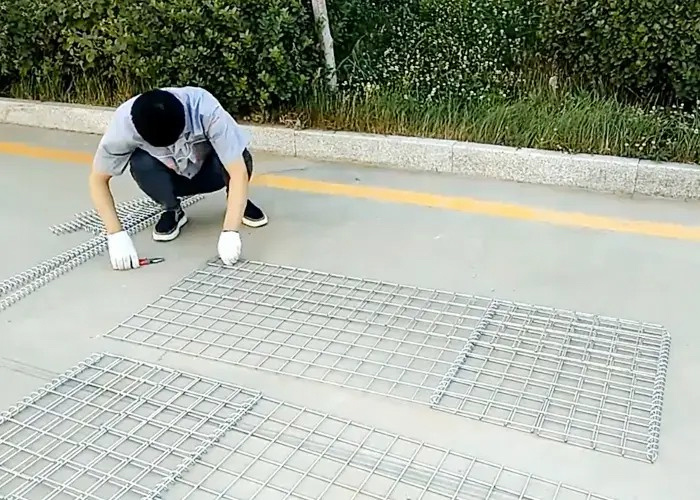

    • Easy installation: Welded mesh gabions are easy to install and do not require specialized equipment or expertise, reducing installation time and labor costs.

    • Environmentally friendly: Welded mesh gabions are a sustainable solution that uses locally sourced materials and allows for the natural flow of water, promoting ecological balance.





    Application of Welded Mesh Gabion:

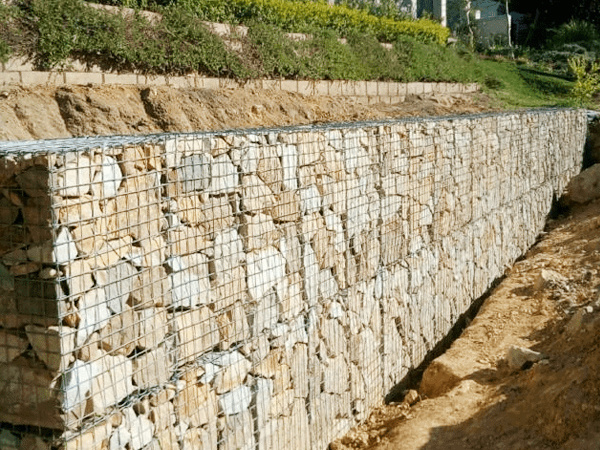

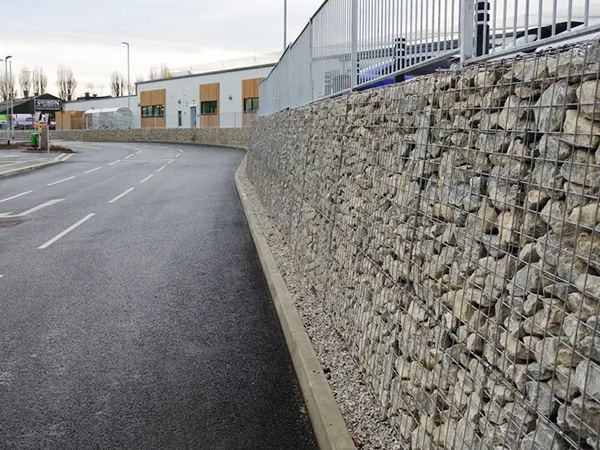

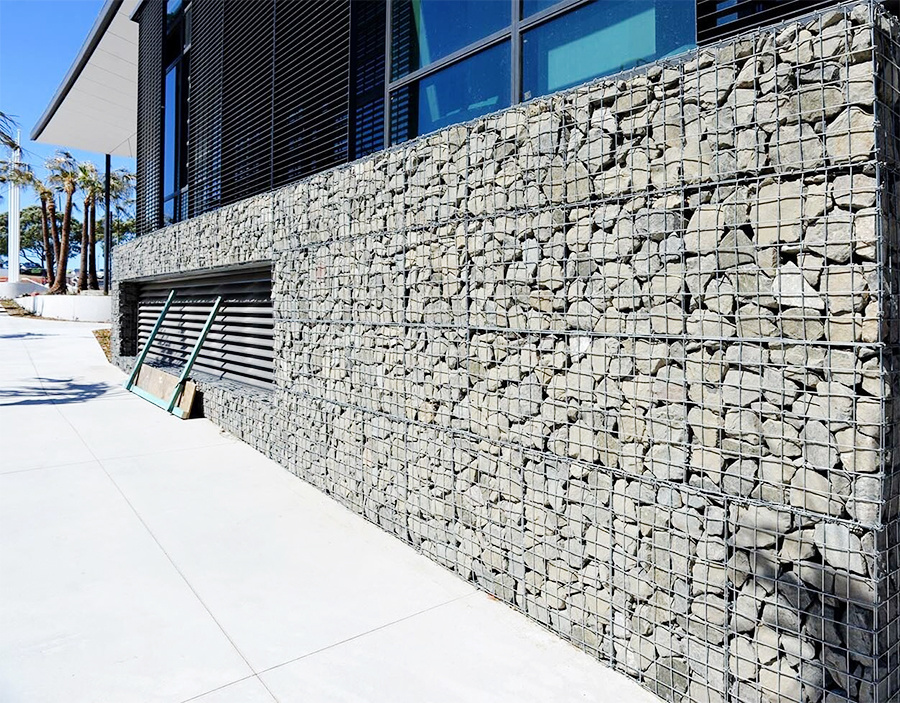

    Welded mesh gabion is widely used in retaining wall structures, rockfall and soil protection and so on. Welded mesh gabions are filled on site with hard and durable stone to form mass gravity structures.

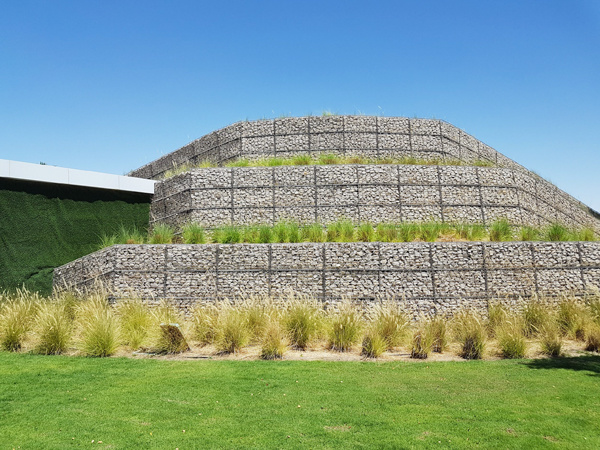

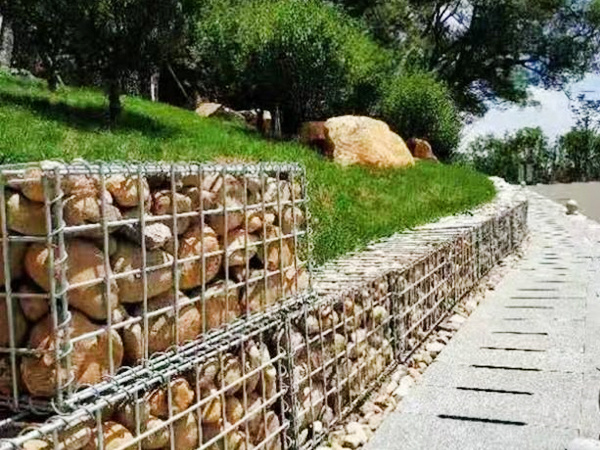

    In more applications, the welded mesh gabion structure can be made into different sizes and shapes for decoration applications. They can be made into gabion pot, staircase, table and bench,
    postbox. It can also be used to form particular landscapes, such as waterfall, fireplace, and decorative wall.

    • Erosion control

    • Flood protection

    • Landscaping

    • Mining and quarrying
