High Tensile galvanized defensive barrier Sand Bastion Explosion proof sand wall

Defensive barrier also named military barrier, is a solid structure composed of welded stone gabions and non-woven polypropylene geotextiles.

Key words:

Defensive Barrier

Classification:

Defensive Barrier

E-mail:

sales01@ypwiremesh.com

Inquiry
Related
  • Description

  • Factory best price 4mm wire galvanized safety defensive barrier welded explosion proof sand wall

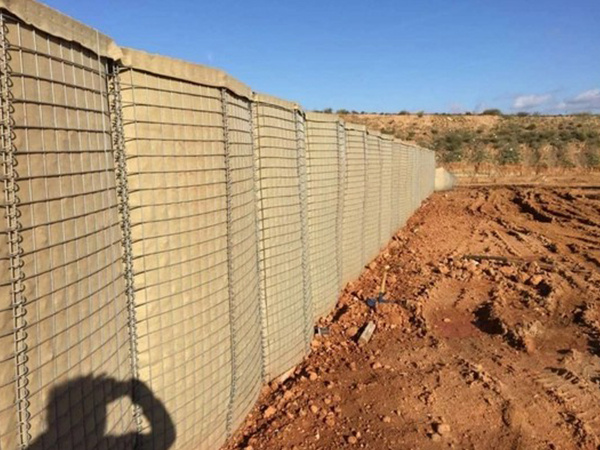

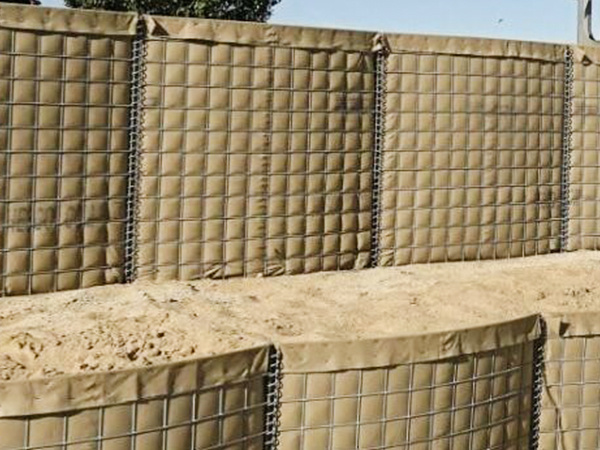

    Defensive barrier also named military barrier, is a solid structure composed of welded stone gabions and non-woven polypropylene geotextiles.It is a modern gabion cage, mainly used for flood control and military fortifications and used as a temporary or semi-permanent levee or blast wall to protect against explosions or small arms.

    Specification：

    Material：galvanized low carbon steel wire or zinc-5% aluminum wire

    Wire diameter：4mm,5mm,6mm

    Mesh opening size:76.2*76.2mm,50*50mm,75*75mm,100*100mm,etc.

    Non-woven polypropylene geotextiles:weight range is 200-400 g/m2,thickness:2.0mm-3.5mm.

    Non-woven polypropylene geotextiles color:green,earth yellow,beige,white,black.

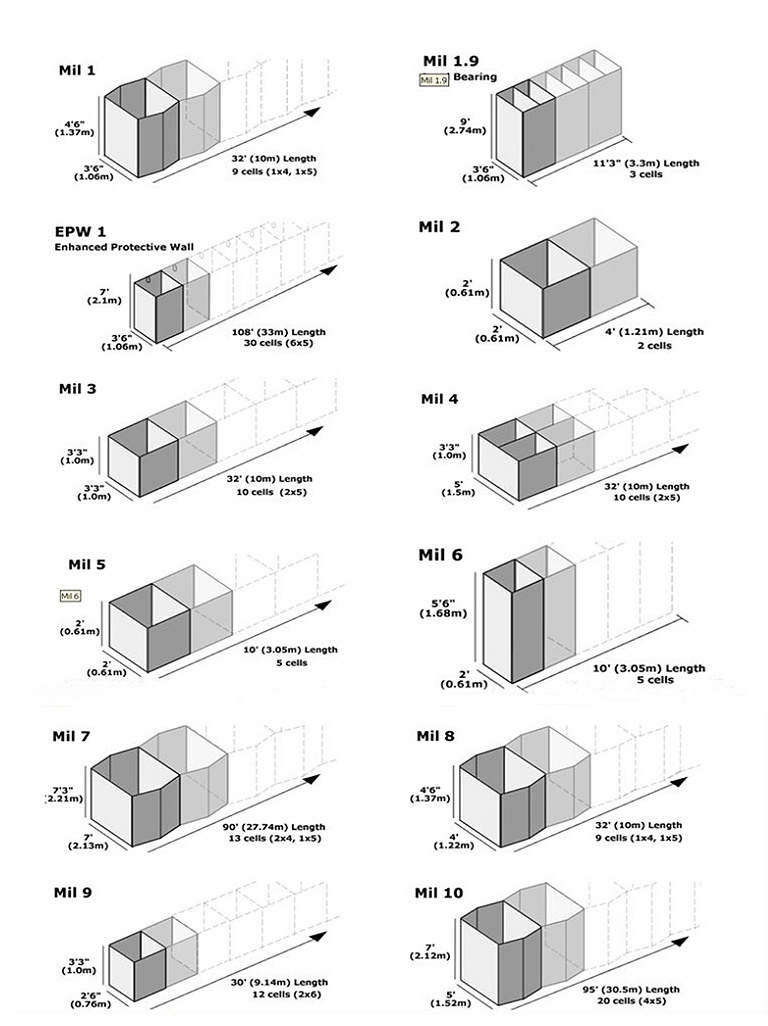

    Standard size

    Height

    Width

    Length

    Cells

    MIL1

    54”(1.37m)

    42”(1.06m)

    32’9”(10m)

    4+5 cells

    MIL2

    24”(0.61m)

    24”(0.61m)

    4’(1.22m)

    2 cells

    MIL3

    39”(1.00m)

    39”(1.00m)

    32’9”(10m)

    5+5 cells

    MIL4

    39”(1.00m)

    60”(1.52m)

    32’9”(10m)

    5+5 cells

    MIL5

    24”(0.61m)

    24”(0.61m)

    10’(3.05m)

    5 cells

    MIL6

    66”(1.68m)

    24”(0.61m)

    10’(3.05m)

    5 cells

    MIL7

    87”(2.21m)

    87”(2.21m)

    91’(27.74m)

    4+4+5 cells

    MIL8

    54”(1.37m)

    48”(1.22m)

    32’9”(9.14m)

    4+5 cells

    MIL9

    39”(1.00m)

    30”(0.76m)

    30’(9.14m)

    6+6 cells

    MIL10

    87”(2.21m)

    60”(1.52m)

    100’(30.5m)

    5+5+5+5 cells

    MIL11

    48”(1.22m)

    12”(0.3m)

    48’(1.22m)

    4 cells

    MIL12

    84”(2.13m)

    42”(1.06m)

    108’(33m)

    5+5+5+5+5+5 cells

    MIL19

    108”(2.74m)

    42”(1.06m)

    10’5”(3.18m)

    3 cells

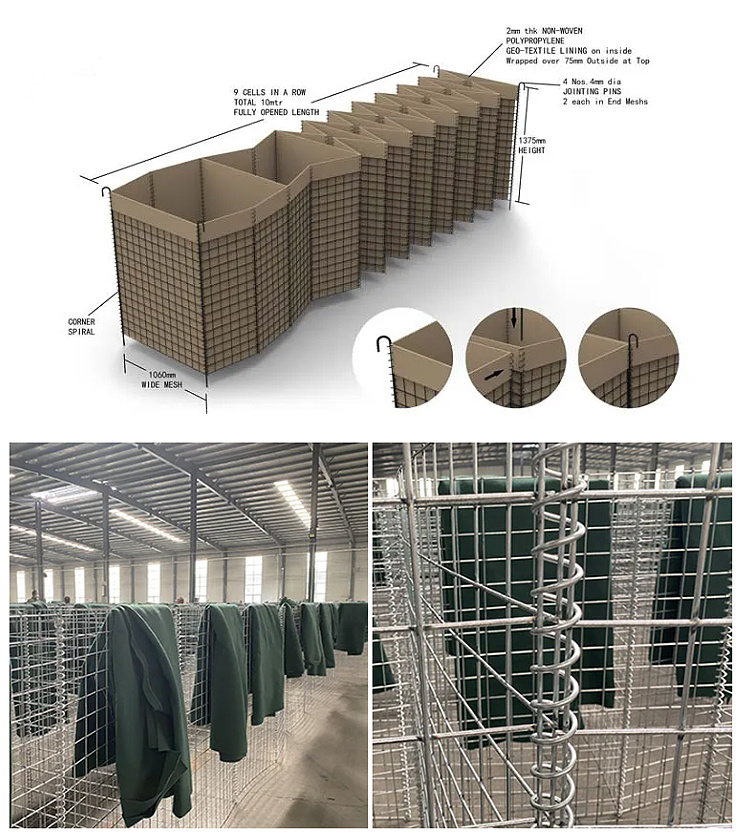

    Connection types of defensive barrier:

    The defensive barriers are usually connected with spiral wire, which allows the gabion cage to be folded up for easy loading and transportation, and can be quickly formed when in use, filled with soil or stone and put into service. The spring is all made of high-strength steel wire, which can greatly improve the robustness of the defensive barrier.





    Application:

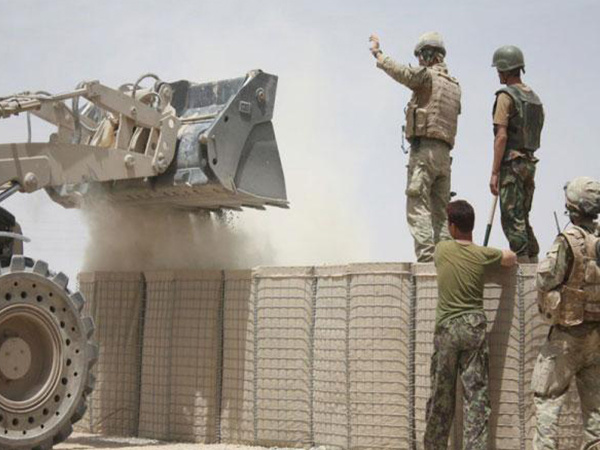

    Defensive barriers are widely used in military wars, and can be quickly built into defensive bunkers, effectively preventing bullets and explosive shrapnel shock waves from harming soldiers.

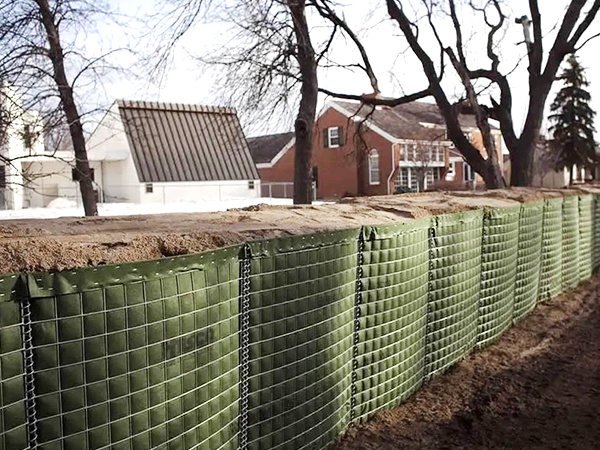

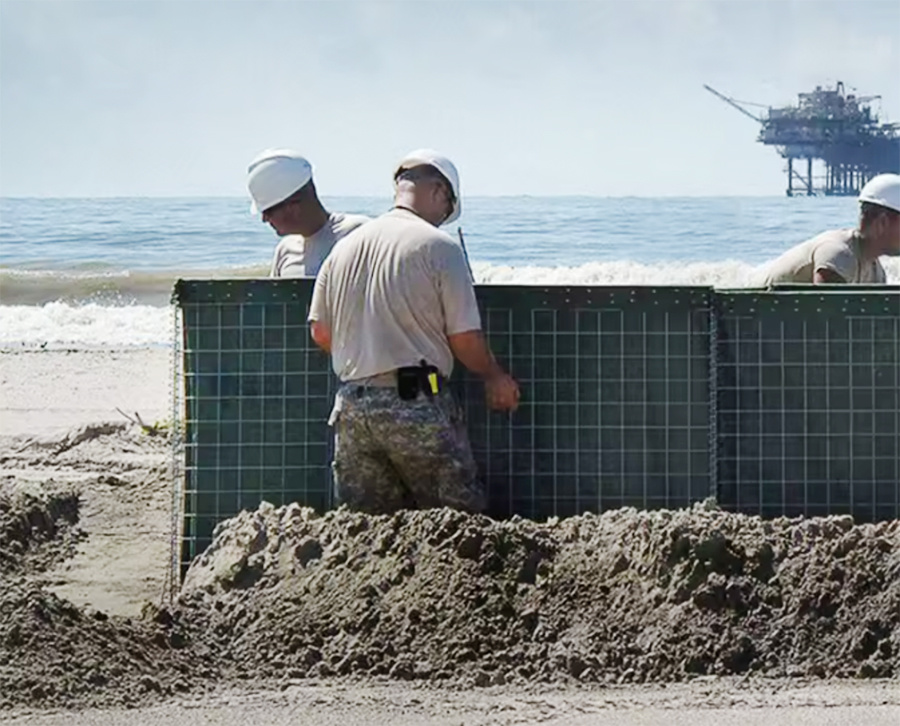

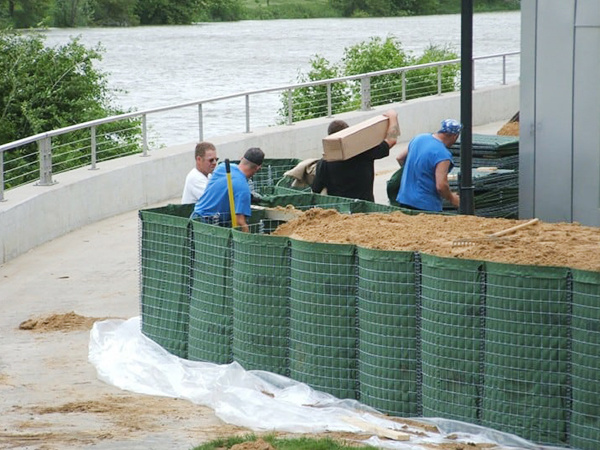

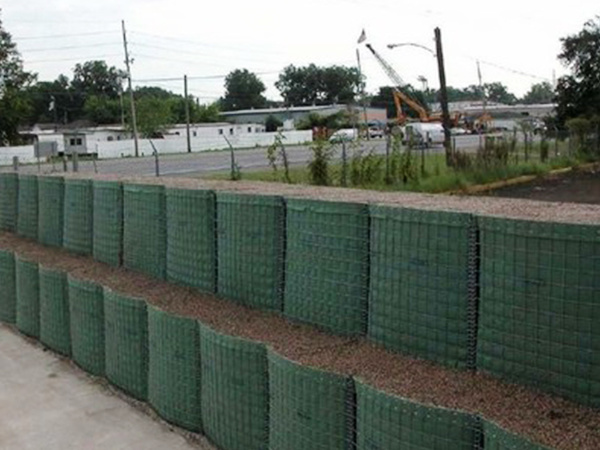

    Defensive barriers can also be used for flood control, with earth or rock filling to form a solid defensive wall that makes it difficult for water to pass through and keeps the river safe.
